Which glass and crystal materials can BY Photonics machine?

We machine JGS1 UV fused silica, JGS2 and JGS3 fused quartz, borosilicate glass, optical glass, optical color filter glass, infrared glass, samarium- and cerium-doped glass, sapphire, PTFE-based diffuse reflector material and laser ceramics.

What is the difference between JGS1, JGS2 and JGS3 quartz glass?

JGS1 is synthetic UV-grade fused silica with high transmission from about 185 nm. JGS2 is fused quartz for the visible range with good UV transmission from about 220 nm. JGS3 is infrared-grade fused quartz with low OH content that transmits up to about 3,500 nm.

Which drawing formats should I send for a custom part?

STEP, IGES, DWG, DXF or a dimensioned PDF are all accepted. Please include material, quantity, critical tolerances, surface quality, coating and the operating environment of the part.

How quickly will I receive engineering feedback?

Our engineers review complete drawings and return a manufacturability assessment within 24 hours on working days.

Do you support prototypes and export shipping?

Yes. We support prototype and low-volume orders as well as repeat batch production, and our components are shipped to customers worldwide.

Custom Borofloat 33® Glass Wafers for Semiconductor Manufacturers, Factories

1 / 4

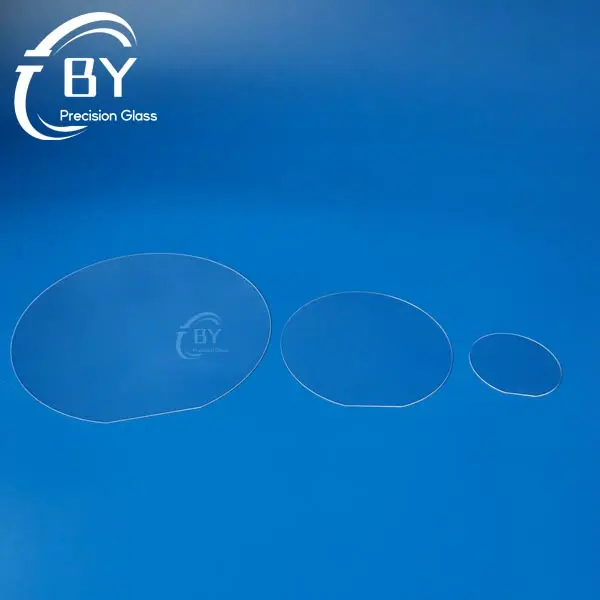

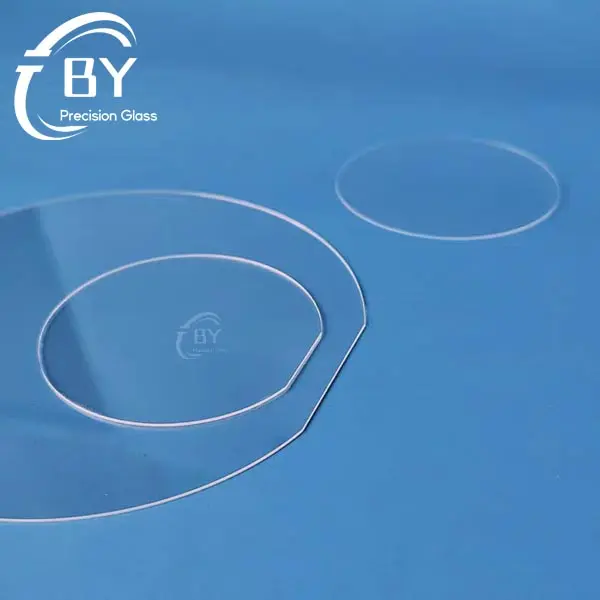

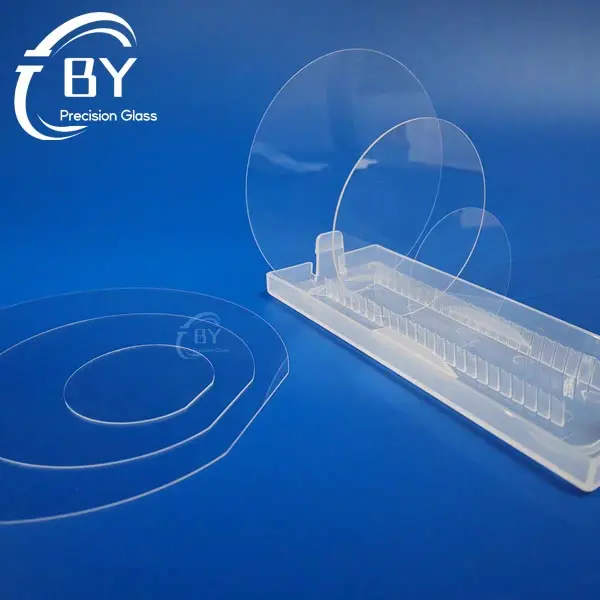

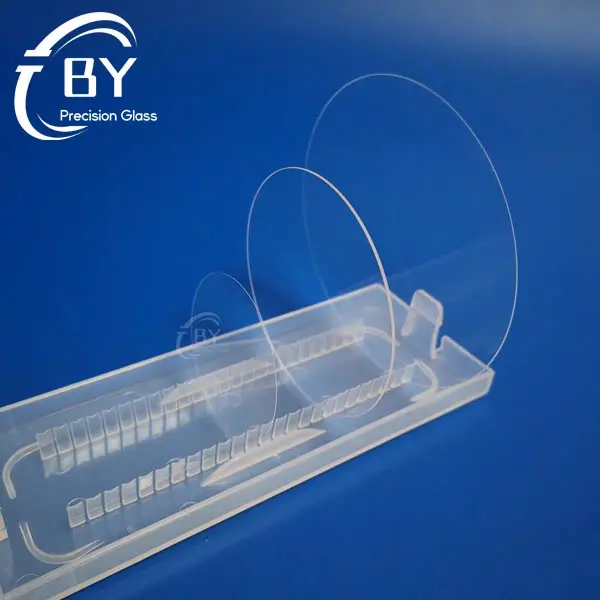

Custom Borofloat 33® Glass Wafers for Semiconductor Manufacturers, Factories

Borofloat^® is a leading brand in glass wafer fabrication, recognized for its exceptional durability in corrosive chemical environments, outstanding mechanical strength, and remarkable optical transparency. This floating borosilicate glass material is an ideal choice for a wide range of applications requiring reliability and clarity.

Send Inquiry

Product Description

Frequently Asked Questions

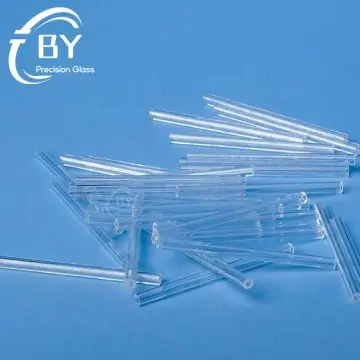

What are the primary applications of precision quartz capillary tubes?

Precision quartz capillary tubes are extensively utilized in optical fiber communications, gas and liquid chromatography, electrophoresis, medical endoscopes, analytical instruments, and microfluidic research due to their thermal stability and chemical purity.

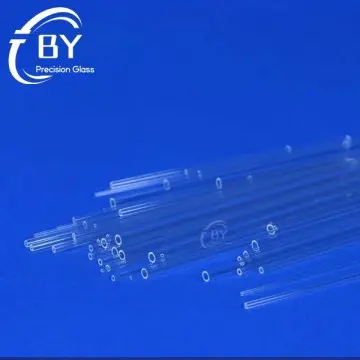

What are the specific advantages of fluorine-doped fused silica capillary tubes?

Fluorine doping lowers the refractive index of fused silica, enabling controlled light guidance, reduced attenuation, enhanced radiation resistance, and superior optical performance in laser delivery and specialized fiber-optic component manufacturing.

What dimensional tolerances can be achieved for custom capillary tubes?

Custom fabrication achieves micro-level dimensional precision, with inner diameter (ID) and outer diameter (OD) tolerances typically controllable down to ±0.002 mm or tighter, depending on specific structural geometry and wall thickness requirements.

How do quartz capillary tubes perform under high operating temperatures?

Fused quartz features an extremely low coefficient of thermal expansion and can withstand continuous operating temperatures up to 1100°C and short-term thermal shocks exceeding 1250°C without mechanical deformation or loss of optical clarity.

Can custom geometries such as multi-lumen or square profiles be produced?

Yes, precision manufacturing accommodates diverse geometries including round, square, rectangular, D-shape, and multi-bore (multi-lumen) configurations customized to exact application specifications.

What is the optical transmission range of fused silica capillaries?

High-purity fused silica provides broad spectral transmission spanning ultraviolet (UV), visible (VIS), and near-infrared (NIR) wavelengths, ranging approximately from 190 nm to 2500 nm.
